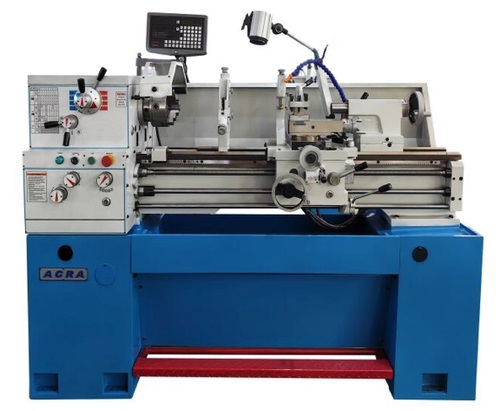

Acra Precision Engine Lathe – ACRA-1440B

Description

Acra Precision Engine Lathe – ACRA-1440B

Standard Accessories:

• 200mm 4-jaw chuck
• 160mm 3-jaw chuck
• Steady rest
• Follow rest
• 4-way tool post
• Footbrake
• Working lamp
• Cooling system
• Bed stop
• Tool box and tools
• Change gears
• Splash guard & Chuck guard
• Oil tray
• Dead center and live center
• Reduction sleeve
• Thread dial indicator
• 2 AXIS DRO for X axis and Z axis

Specifications:

• Swing Over Bed: 14″
• Swing Over Cross Slide: 8-5/ 8″
• Swing Over Gap: 20″
• Length of Gap: 9-3/ 8”
• Distance Between Centers: 40″

Headstock:

• Hole through Spindle: 1-1/2″
• Spindle Nose: D4
• Taper in Spindle Nose: MT-5
• Spindle Bearing Type: Taper Roller Bearing
• Number of Spindle Speeds: 16【8 1 PH】
• Range of Spindle Speeds: 45-1800 rpm【90-1800rpm,1Ph】

Gearbox:

• Number of Longitudinal and Cross Feeds: 40
• Range of Longitudinal Feeds: 0.0012″ – 0.0294”
• Number of Inch Threads: 40
• Range of Inch Threads: 4-112 T.P.I.
• Number of Metric Threads: 22
• Range of Metric Threads: 0.45-7.5 mm
• Leadscrew: 7/8” × 49-1/2”
• Feed Rod Diameter: 3/4”
• Compound and Carriage:
• Toolpost Type: 4-Way
• Maximum Tool Size: 5/8″ x 5/8″
• Maximum Compound Slide Travel: 3-1/2″
• Maximum Cross Slide Travel: 7″
• Maximum Carriage Travel: 37-1/2″

Tailstock:

• Tailstock Spindle Travel: 4-3/4″
• Diameter of Tailstock Spindle: 1-25/32″
• Taper in Tailstock Spindle: MT-3
• Steady Rest Capacity: 1/4”-2-5/8”
• Follow Rest Capacity: 1/4”-2-3/4”
• Length of Bed: 54-1/4”
• Width of Bed: 8”
• Height of Bed: 11”
• Overall Dimensions: 71-3/5”L x 29”W x 48-4/5”H
• Main Motor: 1.5/2.4Kw【2.2KW，1Ph】
• Net Weight (approx.): 1650 lbs
